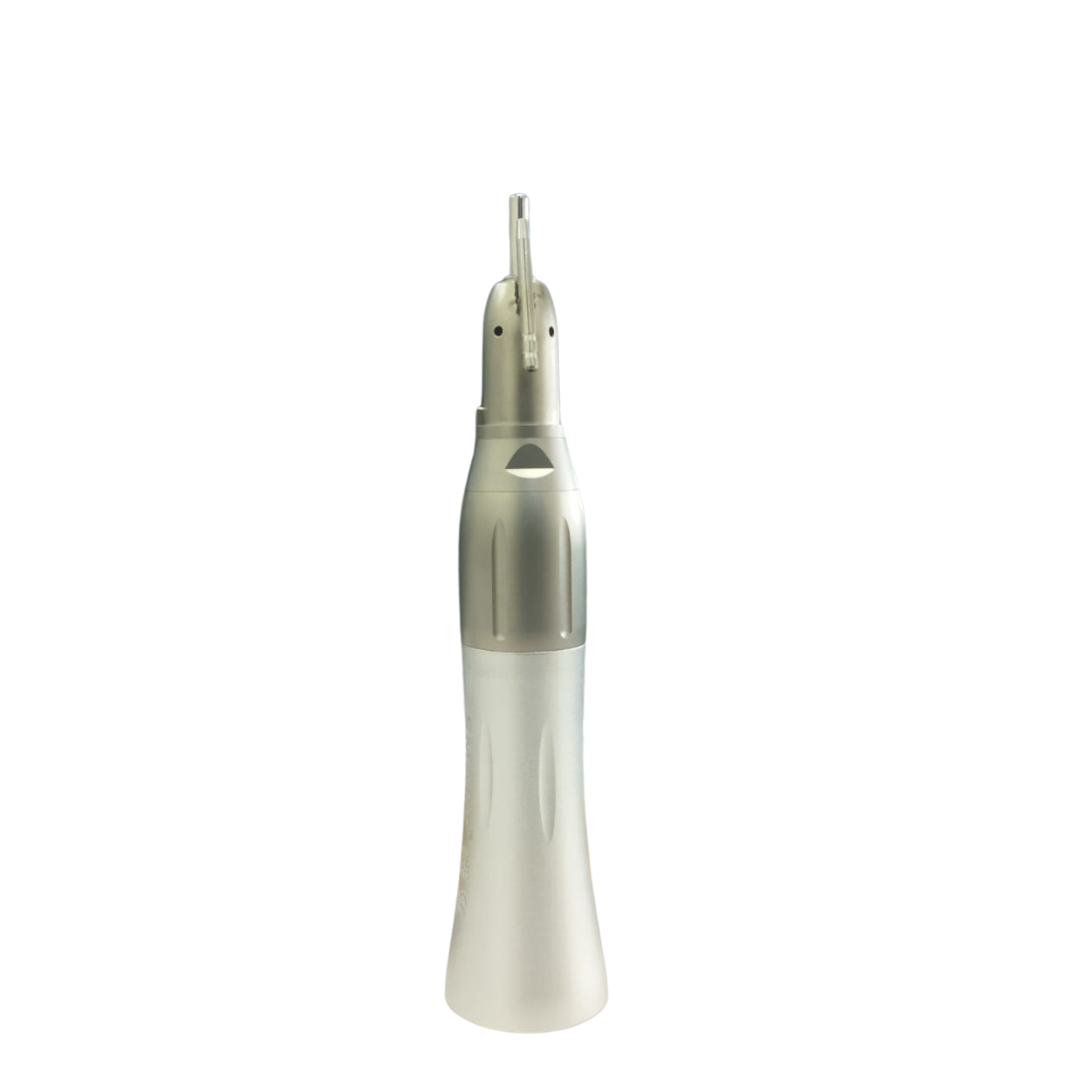

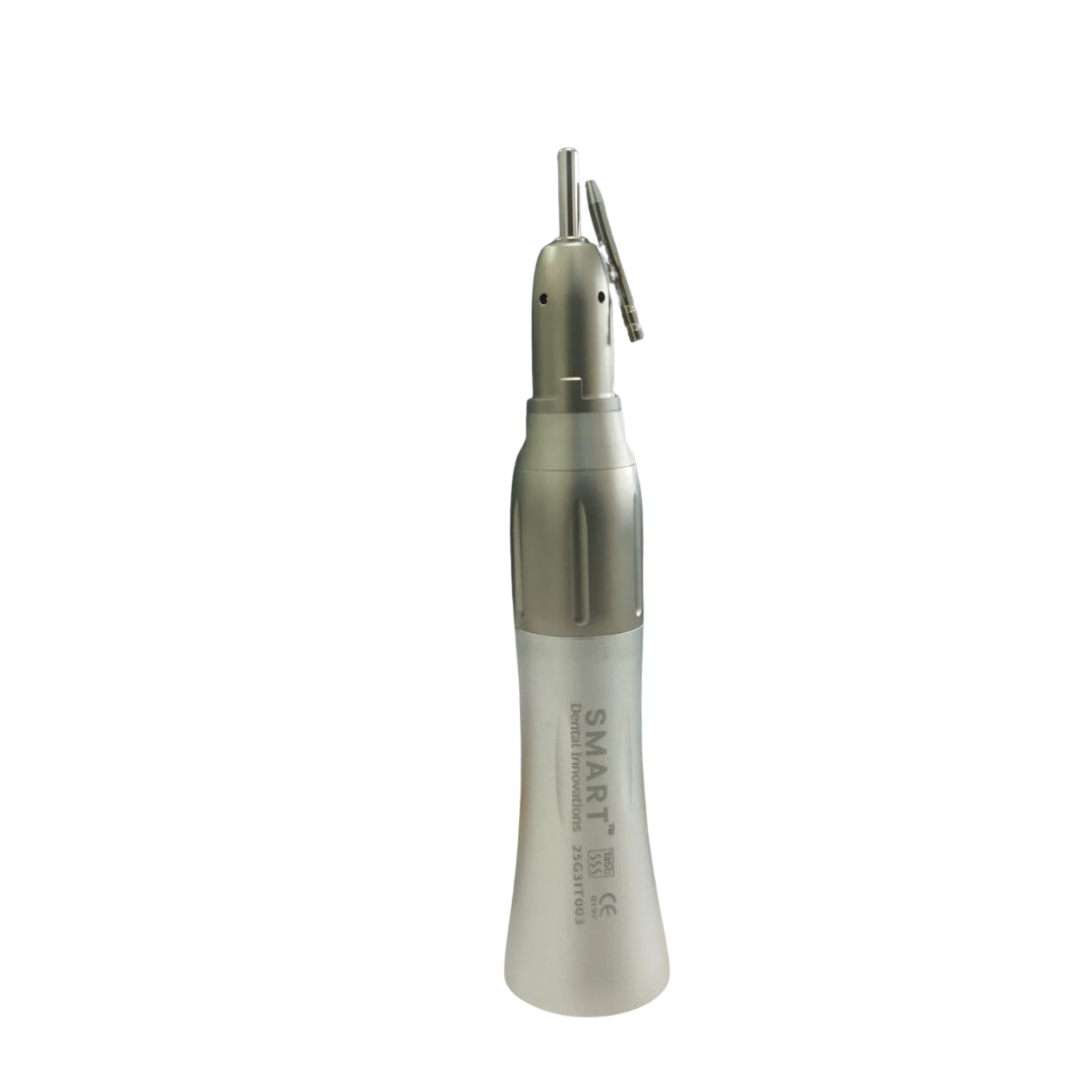

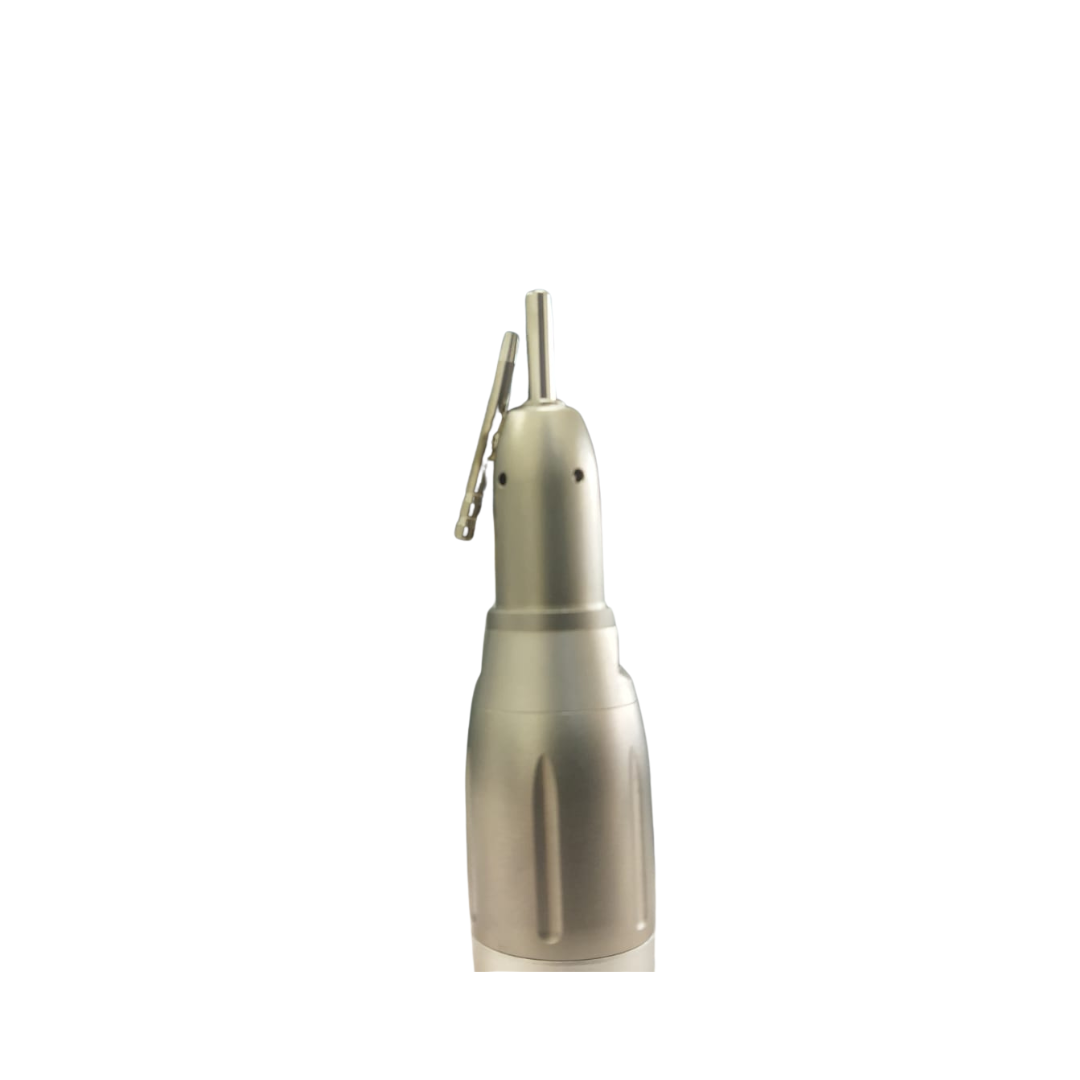

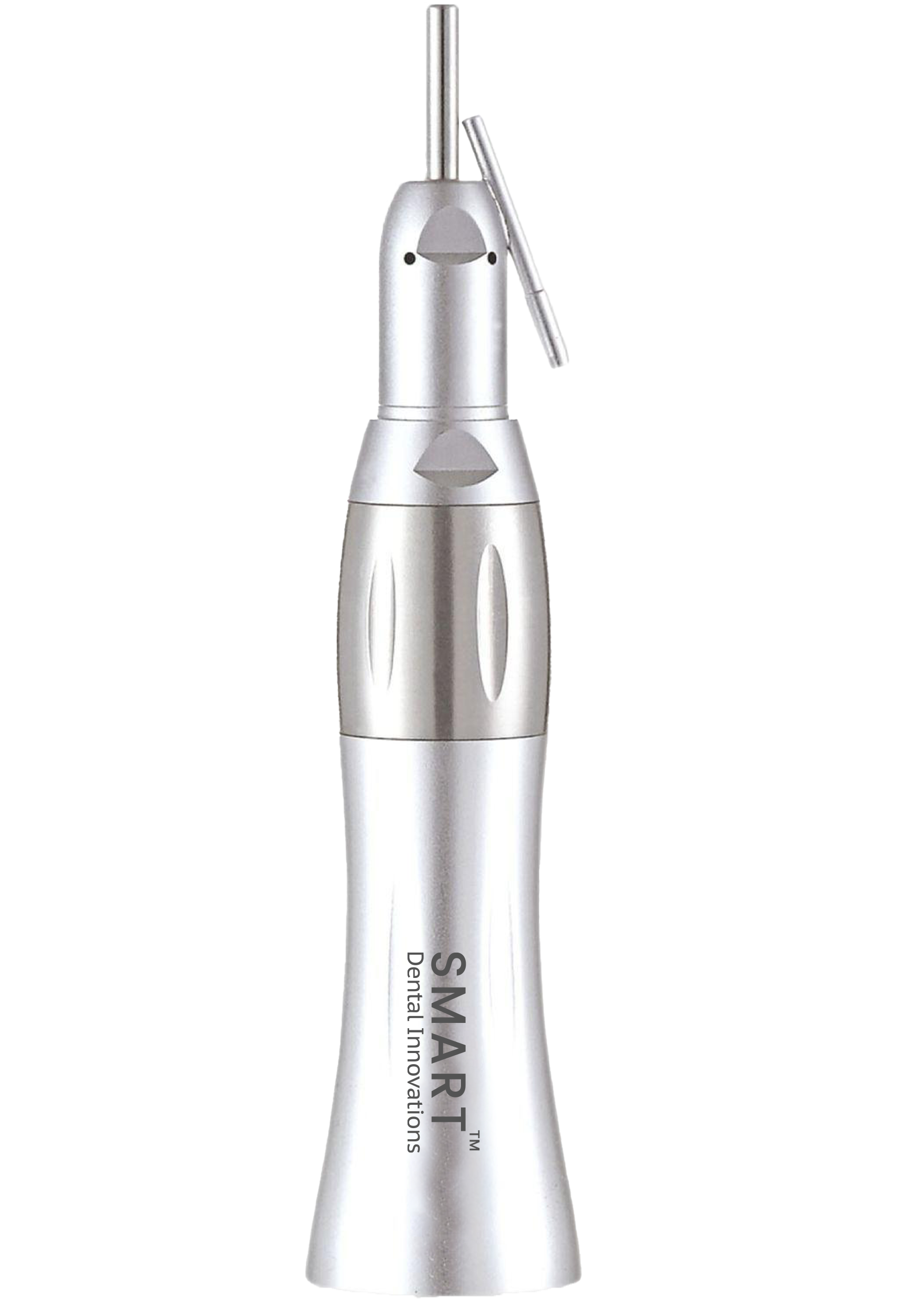

The Surgical External Irrigation Straight Handpiece is a slow-speed surgical handpiece designed for precision and controlled performance during oral surgery, implant placement, bone preparation, and other surgical procedures.

Its straight configuration provides convenient access and handling during surgical procedures, while the external irrigation system delivers coolant directly toward the operating area to help control heat generated during cutting and drilling.

Constructed from high-quality stainless steel, the handpiece is designed for durability, corrosion resistance, and repeated clinical use. Its ergonomic body supports a secure and comfortable grip, helping clinicians maintain control throughout surgical procedures.

Product Name: Surgical External Irrigation Straight Handpiece

Type: Slow-Speed Surgical Straight Handpiece

Irrigation: External Irrigation

Application: Oral Surgery & Implant Surgery

Body Material: High-Quality Stainless Steel

Design: Straight

Operation: Low-Speed / Surgical

Function: Cutting, Drilling & Bone Preparation

Grip: Ergonomic Design

Usage: Reusable

Sterilization: Autoclavable

Construction: Durable & Corrosion Resistant

1. Preparation

• Ensure the handpiece is properly cleaned and sterilized before use.
• Inspect the handpiece for any visible damage or abnormal wear.

2. Connection

• Connect the handpiece securely to a compatible low-speed motor or surgical motor.

3. Bur Insertion

• Select the appropriate surgical bur or rotary instrument.
• Insert the bur securely into the chuck and verify proper locking.

4. Irrigation Setup

• Connect the external irrigation tube to a compatible sterile irrigation source.
• Position the irrigation outlet toward the operating area.

5. Operation

• Set the recommended speed according to the bur and surgical procedure.
• Operate using light, controlled pressure.
• Maintain adequate external irrigation during cutting or drilling to help control heat.

6. After Use

• Stop the motor and carefully remove the bur.
• Disconnect the irrigation supply.
• Clean the handpiece thoroughly according to the manufacturer's instructions.
• Sterilize the handpiece before the next clinical use.

1 × Surgical External Irrigation Straight Handpiece
